Fine Design of Slaughtering and Processing Cold Storage

Have you encountered these situations in the design, installation and use of slaughtering and processing cold storages:

• High operating cost of slaughtering and processing cold roomSerious weight loss of meat during storage in cold room
• Wear and tear of equipment accelerates in high humidity environment
• Ice blockage in refrigeration equipment

During the process of designing the slaughtering and processing cold room, it is important to thoroughly considering the actual environment of each slaughtering step and the differences in its demand. Besides integrating functionality and practicality into the design, paying attention to every design detail is also the key to success. In this Solution, Eden's engineers have reduced the energy consumption and operating costs by replacing the traditional design of single refrigeration system with heat recovery system and hot gas bypass. Moreover, the adverse effects of high humidity environment on equipment operation and maintenance are reduced by using Eden’s customised unit coolers. Due to its high cooling efficiency and uniform and gentle air flow, the moisture and the nutrients of ingredients can be adequately retained, Therefore, the weight and nutrition of meat will not be lost during storage.

| Slaughtering and Processing Cold Room Project

The slaughtering and processing factory covers an area of about 11,000 m² with three areas, i.e., slaughtering area, by-product processing area and finished product processing area. It plans to slaughter 3,000 sheep daily.

| Eden Solution

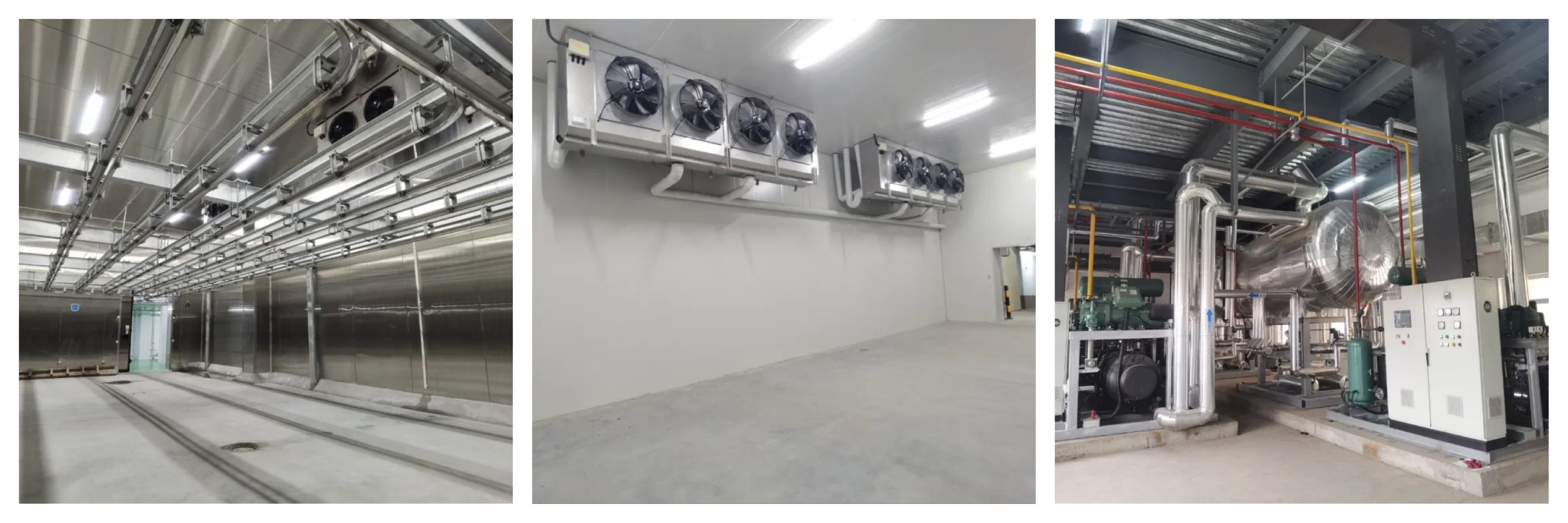

• 4 acid discharge warehouses and supporting cold rooms: 0 - 4°C (Eden High Profile Unit Coolers with direct expansion)
• 4 by-product quick-freezers: -42°C (Eden Enhanced Low Temperature Unit Coolers with barrel pump)
• 6 cold rooms: -18°C (Eden High Profile Unit Coolers with direct expansion)
• 1 processing room: 10°C (Eden Dual Throw Unit Coolers with direct expansion)
• 5 quick-freezers for finished products: -42°C (Eden Enhanced Low Temperature Unit Coolers with barrel pump)

| Characteristics

Energy Saving & Consumption Reduction - Benefiting from the Heat Recovery System and Eden Hot Gas Bypass Technology

The hot gas discharged from the compressor enters the Eden unit cooler via an oil separator that separates the oil from the hot gas. It melts the frost formed on the external surface of the cooler, therefore eliminating the additional energy consumption required by traditional electric defrosting. In this project, all the freezing room, cold room and cooling room adopt Eden unit coolers with hot gas bypass technology, helping slaughtering and processing cold room to reduce its energy consumption and emissions while achieving high-efficiency defrosting. Moreover, the heat recovery system is applied to the floor insulation, using glycol as the ground insulating medium to protect floor heating treatment done in the cold area. The system can recover the heat in the high-temperature and high-pressure refrigerant discharged from the compressor, thereby improving the energy efficiency and optimizing the operational energy efficiency of the entire refrigeration system.
